Euromex NexiusZoom ESD stereo microscopes

EYEPIECE(S)
Pair of HWF 10x/22 mm eyepieces

HEAD
Binocular or trinocular heads with 45° inclined tubes. Both eyepieces with ± 5 diopter adjustments. Interpupillary distance adjustable between 54 mm and 75 mm

OBJECTIVE
Zoom 1:6.7 objective with 0.67x to 4.5x magnifications. Field of view from 33 mm to 4.9 mm. Working distance 110 mm. Additional 0.5x, 0.75x, 1.5x and 2.0x lenses available. All optics are anti-fungus treated and anti-reflection coated for maximum light throughput

MAGNIFICATIONS
Working distance and field of view with standard HWF 10x / 22 High Wide Field eyepieces.

STAND
The rack & pinion and pillar stands of the NexiusZoom are equipped with an ergonomic designed, wide flat base. Complete with two object clamps and Ø 100 mm transparent and black/white stage plates and double illuminators. The coarse adjustment is equipped with tension control. The ergonomic designed universal single arm stand and double arm boom stand are ideal for looking at large samples or working under the microscope. Standardly supplied without illumination

Suitable for e.g. ring illuminators LE.1972 and LE.1973 with 60 or 144 power LEDs controlled in segments ideal for creating or lift shades
More illumination options, click here

The stands are alloy metal casted with hardened off-white coating. ESD safe coating versions are also available

ILLUMINATION
3 W transmitted and incident LED illuminators with internal power supply 100-240 V. Both illuminators can be used simultaneously and the light intensities can be adjusted separately.

ESD SAFE MICROSCOPES
For inspection and assembly applications. Electrostatic discharge (ESD) is the unwanted sudden flow of electricity between two electrically charged objects. ESD can cause a range of harmful effects as well as permanent damage to solid state electronics components. Euromex therefore now introduces electrostatic protected microscopes in the NexiusZoom range. The body and stand of the microscope are coated with a special static dissipative paint eliminating harmful electrostatic discharges making the microscopes suitable for all static-sensitive environments

PACKAGING
Supplied with power cord, dust cover and user manual. All packed in a polystyrene box .

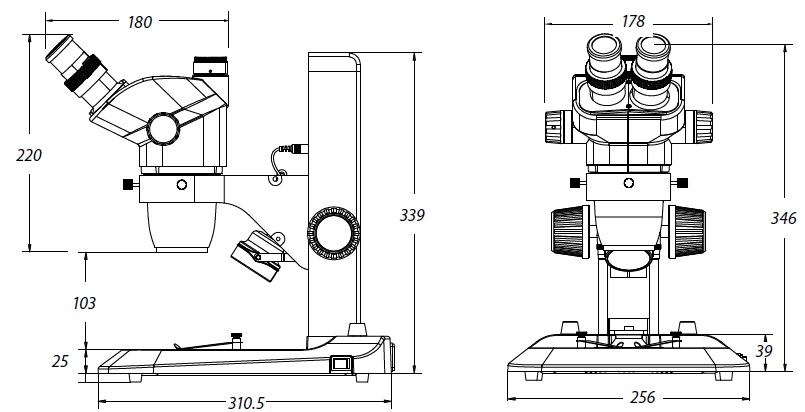

SIZE (MM)
