Euromex

EYEPIECE(S)

• WF10x/18 mm Wide field
• Polarization models are supplied with one extra WF 10x/18 mm eyepiece with crosshairs and micrometer
• Secured and with pointer for monocular models
• The BioBlue EVO models are supplied with WF 10x/20 mm eyepieces

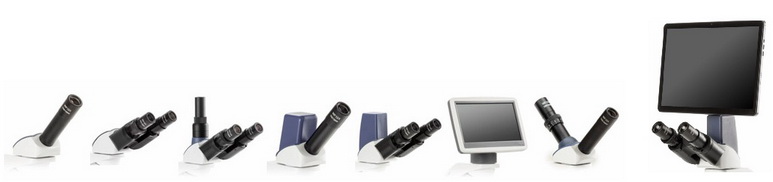

HEADS

• All heads are 360° rotatable and secured
• Monocular models with 45° inclined tubes
• Binocular and trinocular models have 30° inclined tubes, interpupillary distance is adjustable between 48 and 75 mm and equipped with a ± 5 diopter adjustment on the left tube
• The trinocular head has a fixed light path beamsplitter (50:50) and generates an erect image
• Models with digital head are supplied with a integrated 5.0 MP 1/2” CMOS sensor with 2560 x 1920 pixel resolution USB 2.0 camera
• Models supplied with a 7” LCD screen
• Optional discussion head available

NOSEPIECE
Reversed quadruple nosepiece on ball bearings. Models for polarization are supplied with a swing-out analyzer

OBJECTIVES - 45 MM parfocal

• Supplied with semi plan 4x/0.10, 10x/0.25, S40x/0.65, S60x/0.85, S100x/1.25 oil immersion objectives configuration is depending on model
• The S40x, S60x and S100x oil immersion objectives are spring loaded (to prevent damage to sample and objectives)

All optics are anti-fungus treated and anti-reflection coated for maximum light throughput

FOCUSING

• Coaxial coarse and fine adjustments with 200 graduations. Precision 2 μm per graduation, 0.4 mm per rotation
• Total travel approximately 23 mm
• Supplied with an adjustable rack stop to prevent damage to sample and objectives
• The coarse adjustment is equipped with friction control

STAGE

• 130 x 130 mm with mechanical 70 x 28 mm X-Y translation stage except for models BB.4200 and BB.4205
• These models have a 120 x 120 mm plain stage supplied with two non-removable object clamps
• The models for polarization are supplied with 129 mm round stage, 360° rotatable and two object clamps

POLARIZATION EQUIPMENT
The swing-out analyzer is mounted in a slider under the head. The rotatable 360° polarizer fits on the collector lamp

POLARIZATION MODELS

• Supplied with one extra WF 10x/18 mm eyepiece with crosshairs and micrometer
• Equipped with analyzer, mounted in a slider under the head
• 360° Rotatable, graduated polarizer on the lamp house
• Standard supplied with H-LED illumination for correct color rendering (very similar to the halogen light spectrum) and an integrated 100-240 Vac power supply
• Polarisation attachments for standard microscopes are available optionally

CONDENSER
Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder

ILLUMINATION

• Binocular and trinocular models are supplied with an intensity adjustable 1 W NeoLED™ illumination system for increased light output
• Monocular models are supplied with an adjustable 1W LED illumination
• The models for polarization are supplied with H-LED illumination for correct color rendering (very similar to the halogen light spectrum), rechargeable batteries with an integrated 100-240 V power supply. However 20 W halogen illumination is also available for polarization models on special request
• The EVO models are equipped with Köhler NeoLED™ illumination
• All BioBlue microscopes are supplied with rechargeable AA batteries and integrated 100-250 Vac power supply for cordless operation. LCD versions do not run on batteries

DIGITAL MODELS

See BioBlue digital verisons page
