Euromex DZ zoom stereo microscopes

EYEPIECES
Pair of EWF 10x/22 mm eyepieces

HEAD
• Ergonomic binocular 0-35° tilting head
• Binocular 20° tilted head
• Diopter ± 5 adjustment on both eyepieces
• Interpupillary distance from 55 to 75 mm
• Photo ports for one or two cameras

CENTRAL ZOOM UNITS
Three central zoom units are available:
• 1:6.3 for total magnifications from 8 to 50x
• 1:8 for total magnifications from 8 to 64x
• 1:10 for total magnifications from 8 to 80x

COMMON MAIN OBJECTIVE
• Standard configurations are supplied with a 1x plan apochromatic Common Main Objective, working distance 78 mm.
• Other plan apochromatic Common Main Objectives 0.5x (working distance 126 mm) and 2x (working distance 33 mm) are also available.

All optics have an anti-reflection coating for maximum light throughput and are anti-fungus treated

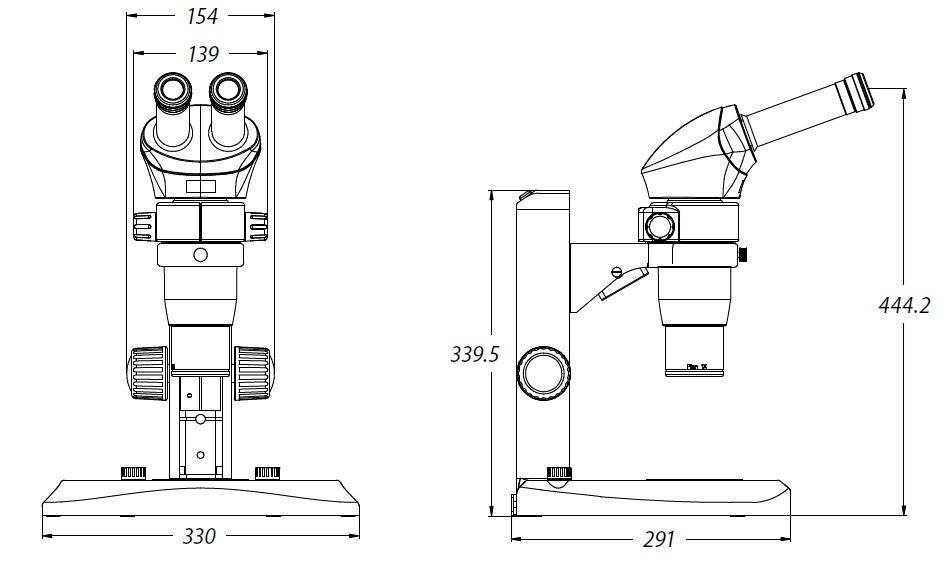

STAND
• Large ergonomic stand with ø 100 mm object plate and two object clamps
•  Coaxial coarse and fine adjustment
• A universal stand and articulated arm stands without illumination are also available for configurations built according to customer’s specifications
• The multihead systems come with a 420 x 350 mm stage - without illumination - and with a 254 x 254 mm glass plate

ILLUMINATION of standard DZ.5040 STAND
• Transmitted and incident 3 W LED illuminations with a built-in 100-240 V power supply
• Both illuminators can be used simultaneously and the light intensities can be adjusted separately

PACKAGE CONTENT
• Supplied with power cord, dust cover, a spare fuse and user manual.
• All packed in a polystyrene box

STANDARD CONFIGURATIONS
• All 9 standard configurations are equipped with EWF10x/22mm eyepieces, 1x plan apochromatic Common Main Objective
• All 9 standard configurations are equipped with DZ.5040 rack & pinion stand with incident and transmitted LED illumination

MAGNIFICATIONS AND FIELD OF VIEWS FOR STANDARD CONFIGURATIONS
