Luyor fluorescent illuminations

Cost-effective solution
Compatible with almost all stereo microscopes
Quick to install
LED light source

This product line is primarily recommended for those who do not want to buy an epi-fluorescence stereo microscope at high costs, but want a cost-effective system. It can be easily installed on existing stereo microscopes. It is compatible with almost all types.

LUYOR-3421 Stereo Microscope Fluorescence Adapter is a complete solution for adding fluorescence to existing stereo microscopes. It can also be used as an excitation light source separately. LUYOR-3421 is equipped with a 20W high-power LED, providing a large irradiation area and high light intensity. You can select multiple wavelengths and observe the expression of various fluorescent proteins such as BFP, GFP, EGFP, YFP, and RFP (dsred, mcherry, tdtomato). LUYOR-3421 excitation light head adopts a BNC fast interface, and the replacement of the irradiation module is simple and fast. You can purchase other modules at any time, with a total of 6 wavelengths available: 365nm, 405nm, 450nm, 488nm, 505nm, and 530nm.

Color Code	Excitation	Emission	Fluorophores
U – Ultra Violet	360-380nm	415nm LP	DAPI, Hoechst
V – Violet	400-415nm	450nm LP	CFP
R – Royal Blue	440-460nm	495nm LP	GFP, eGFP, Fluorescein
R-GO – Green Only	440-460nm	500-560nm BP	GFP, eGFP, Fluorescein
C – Cyan	490-515nm	550nm LP	YFP, Venus, Lucifer Yellow
G – Green	510-540nm	590nm LP	DsRed, tdTomato, RFP

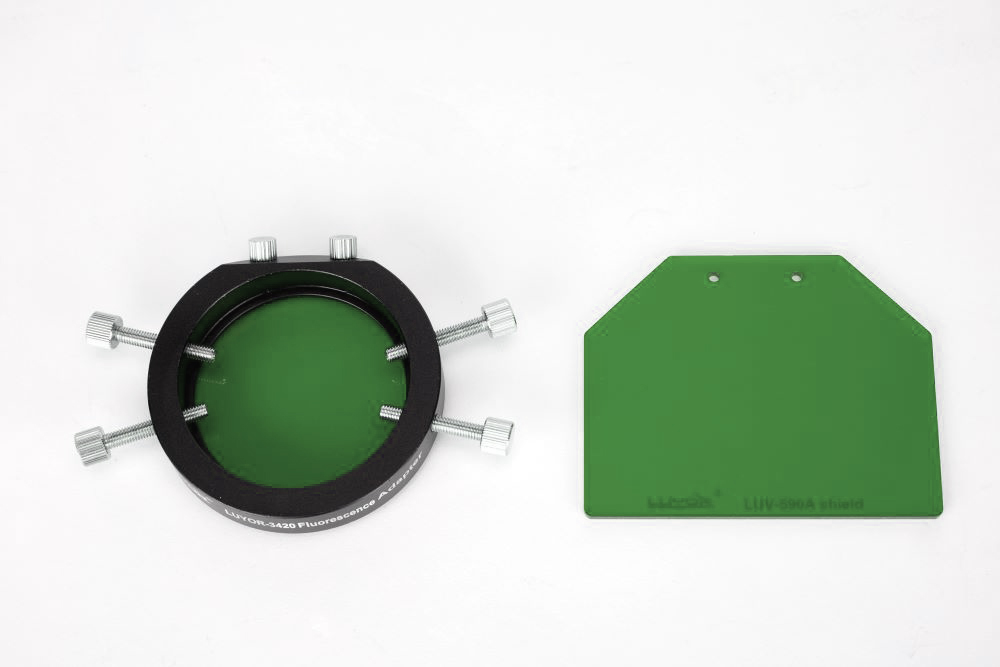

Green-Only Barrier Filter

The Green-Only (GO) Barrier Filter isolates the green part of the spectrum and is for use with the Royal Blue excitation source. While our other barrier filters are longpass filters this filter is a bandpass, transmitting from approximately 500 to 560nm. The longpass filter has served well for most users who need to visualize green fluorescent protein (GFP), and if you are exploring fluorescence in nature it is preferable. The primary motivation for adding the green-only filter to the line-up is for the benefit of researchers using GFP in plants such as Arabidopsis thaliana, a common research model. Plants contain chlorophyll, which has a distinctive red fluorescence that can sometimes mask the GFP emission, making it harder to see and photograph.

Technical features

Modular Design
Installs in seconds - just clicks into place
Interchangeable excitation/emission combinations
Move from microscope to microscope
No modification to your existing microscope

Barrier Filter for GFP and eGFP:

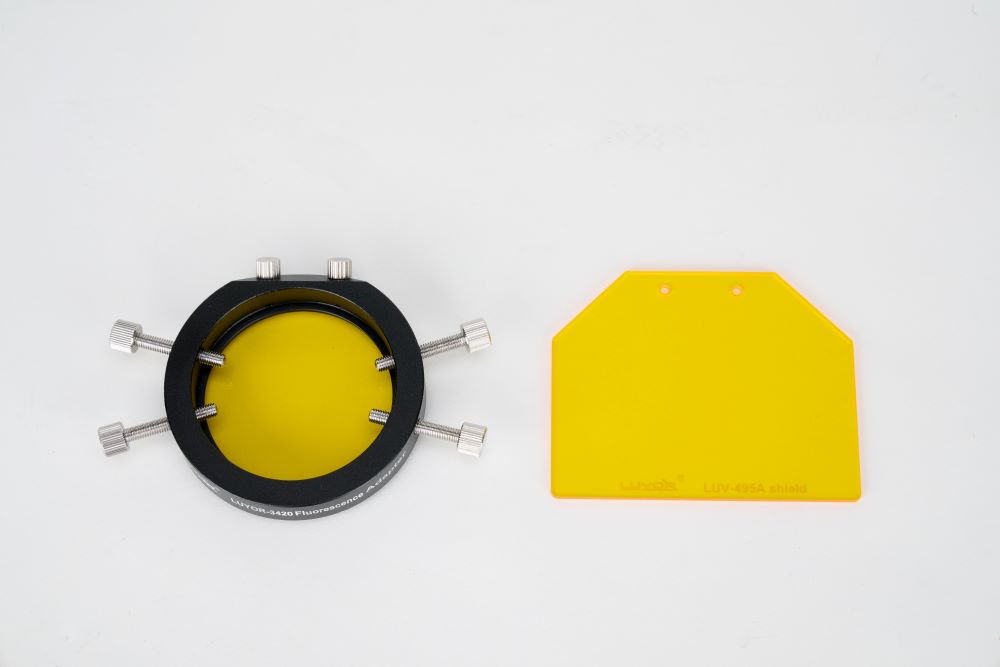

Barrier Filter for YFP:

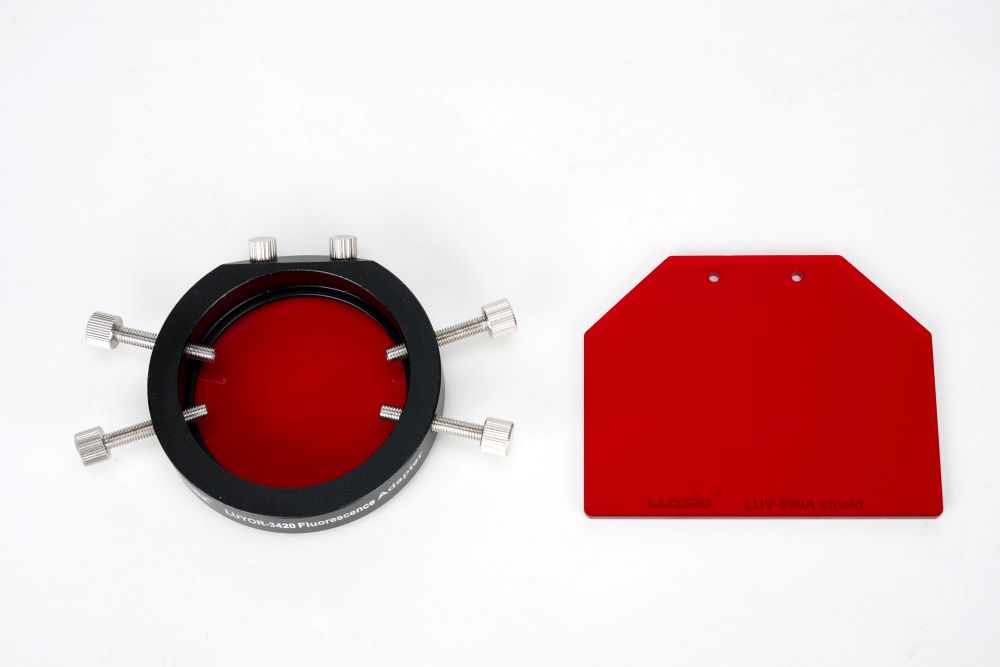

Barrier filter for Txred
