Alpha STO-4T capillary microscope

Head:

45° inclined tubes, equipped with LCD screen
360° rotatable

Eyepieces:

WF 10x/22mm eyepiece pair, with diopter adjustment
WF 15x/16mm eyepiece pair, with diopter adjustment
WF 20x/12mm eyepiece pair, with diopter adjustment
All eyepieces can be used with glasses
Diopter adjustment: +/-5D, adjustable on both eyepieces
Interpupillary distance adjustment: 52-75 mm

Zoom body with “CLICK-STOP” mechanism:

Zoom ratio: 1 : 6.3
(1x) Zoom lens: 0.8 – 5.0x
Total magnification: 8-50x
Field of view: 27-4mm
Working distance: 115 mm

Additional conversion lenses:
0.5x
Total magnification: 4-25x
Field of view: 55-8.8mm
Working distance: 220 mm

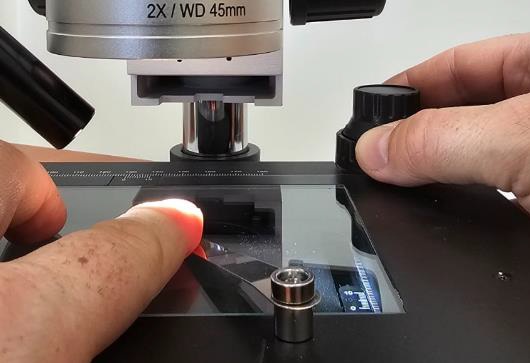

2x
Total magnification: 16-100x
Field of view: 13.8-2.2mm
Working distance: 43.5 mm

Focusing system:

Mechanically adjustable on the stand rod
Focusing system: single-axis, coarse adjustment
Focusing diameter: 76mm
Torque-adjustable macro focusing knobs

Illumination:

External, single-arm, fiber optic, 6W
PowerLED light source, temperature 4000K
The lamp body is angle adjustable and position holding

Stage:

X-Y movable
Dimensions: 180x155mm.
Range of movement:
75mm (X) x 55mm (Y).
Stepping accuracy: 1mm

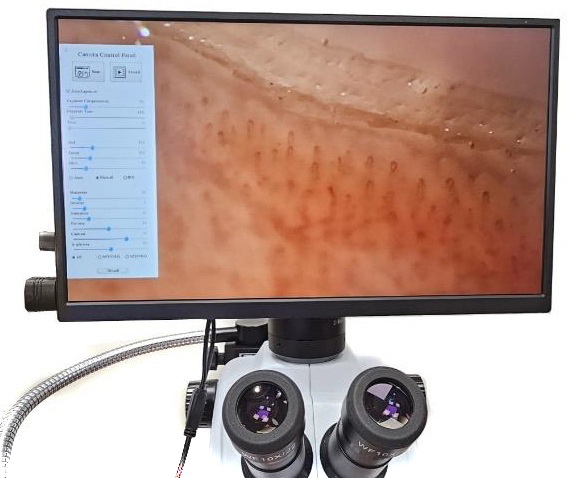

Camera system:

Full HD image display on LCD monitor
60 fps image refresh rate for live image
Taking pictures and video recording on SD card inserted in the camera
with 30 fps image refresh rate
OSD menu integrated into the camera
Use with mouse
(the camera also supports wireless mice)
Recording videos in Full HD resolution
Outputs:
• HDMI
• USB (for mouse control only)
Can be used independently with a monitor

Accessories in the package

Hungarian user manual
Dust cover
