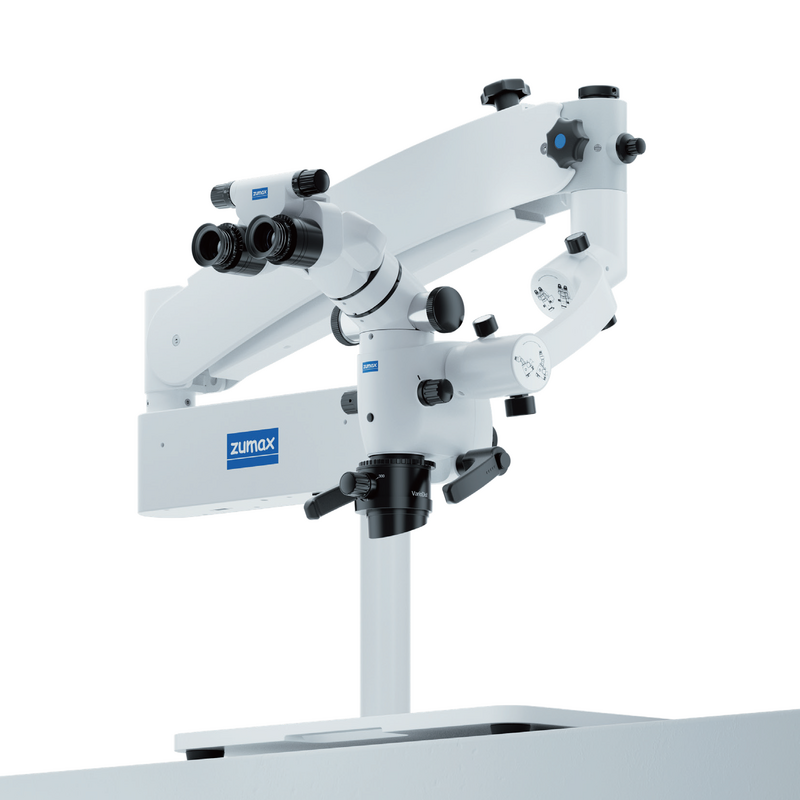

Zumax OMS 2350 table top training microscope
- 0-180° tiltable binocular tube
- VarioDist® objective
- LED Illumination
- 5 -step magnification changer
Table top training microscope
- Magnification system: 5-step, manual: 0.4x,0.6x,1.0x,1.6x, 2.5x
- Head: 0-180° tiltable ergonomical, f = 170mm
- Eyepieces: 12.5X/17.7mm wide-field eyepieces for spectacle wearers; diopter adjustment range +/-7D
- Interpupilary Distance: 55-75mm, PD adjust is option
- Magnification: 4.3x, 6.8x, 10.6x, 16.9x, 26.5x
- Field of View: 52.0mm / 33.0mm / 21.0mm / 13.0 / 8.3mm
- Working distance:
f=200mm objective with fine focus, or
f=250mm objective with fine focus, or
adjust between 190-300mm with the special VarioDist® objective - Illuminations: high intensity LED, life time: >70.000 h
- Intensity: >60,000 lx (WD=250mm)
- Filters: yellow and green
Without filter – Yellow filter – Green filter - Field of illumination: φ50mm
- Protector lens for VarioDist® objective
- Table top stand
- Size: heigh: 525mm, max. overhang: 1200mm
- Head adjust up/down: +/-300mm
- Table size: 460x550mm
- Optional accessories:
-Iris diaphragm adapter
-WF10x eyepeices
-Beam splitter and C-mount camera adapter for digital cameras
-Beam splitter and Photo adapter for SRL cameras
-Foot switch control for SRL cameras
