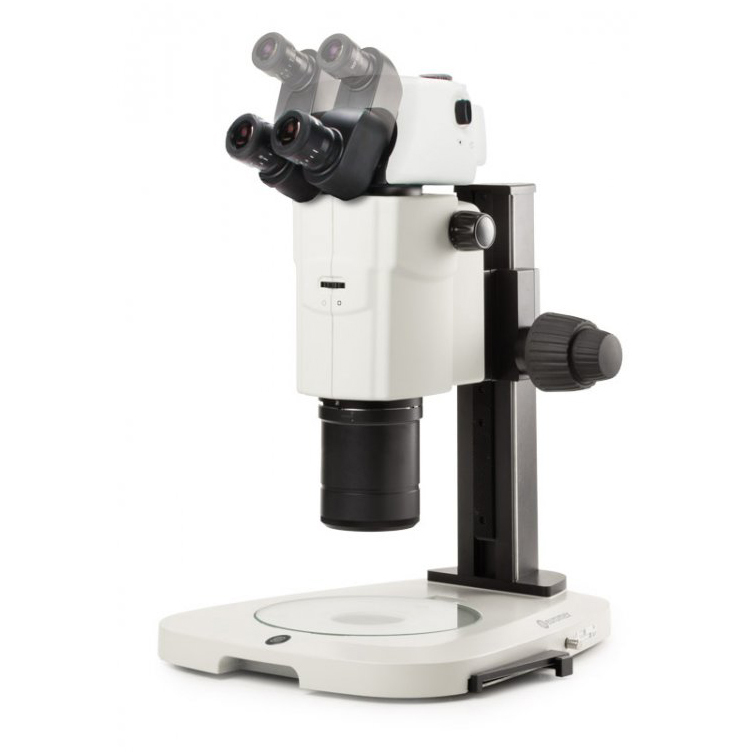

Euromex UltraZoom microscope

EYEPIECES
Pair of EWF 10x/23 mm eyepieces

HEAD

• Ergonomic 0-30° tilting head or binocular 20° head

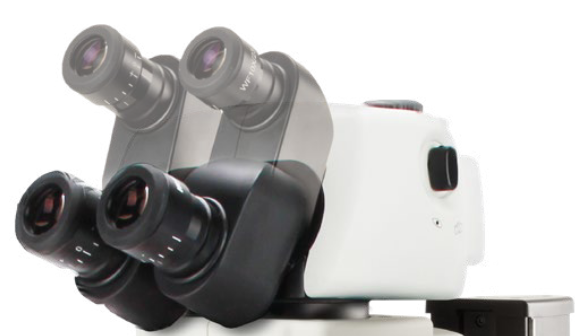

• Eye points can be elevated 47mm

• Diopter ± 5 adjustment on both eyepieces
• Interpupillary distance from 55 to 75 mm
• Photo port with 1x c-mount for 1” cameras

CENTRAL ZOOM UNIT
1:18 for total magnifications from 0.75 to 13.5x
Magnification steps: 0.75x, 1x, 2x, 3x, 6x, 10x, 13.5x
Built-in adjustable aperture

COMMON MAIN OBJECTIVE

• Standard supplied with a 1x plan apochromatic Common Main Objective, WD 60 mm
• Standard supplied with protection window

WD = working distance
All optics have an anti-reflection coating for maximum light throughput and are anti-fungus treated

STAND

• Large ergonomic stand with ø 180 mm object plate

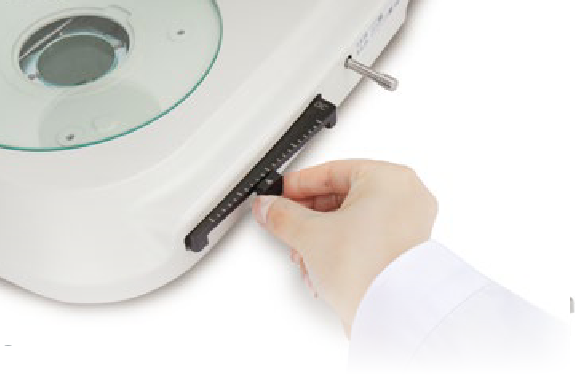

• Oblique Contrast Illumination slider
• Coaxial coarse and fine adjustment, focusing range 159mm

 ILLUMINATION

Supplied with 8 W NeoLED transmitted and Oblique Contrast Illumination built-in 100-240 V power supply.

OBLIQUE ILLUMINATION

Oblique illumination enables the specimen to be illuminated from one side only (off-axis) by having the light source titled or directed from an oblique angle or from the side. Only diffracted light on a single side is admitted to the objective and, because of the obliquity of illumination, diffracted light on the other side misses the objective altogether. As a result, details in pseudo-relief from an otherwise almost invisible colorless specimen are than revealed.

PACKAGE CONTENT
Supplied with power cord, dust cover,  tools and user manual. All packed in sturdy box

MAGNIFICATIONS
Objective WD 60 mm, standard outfit

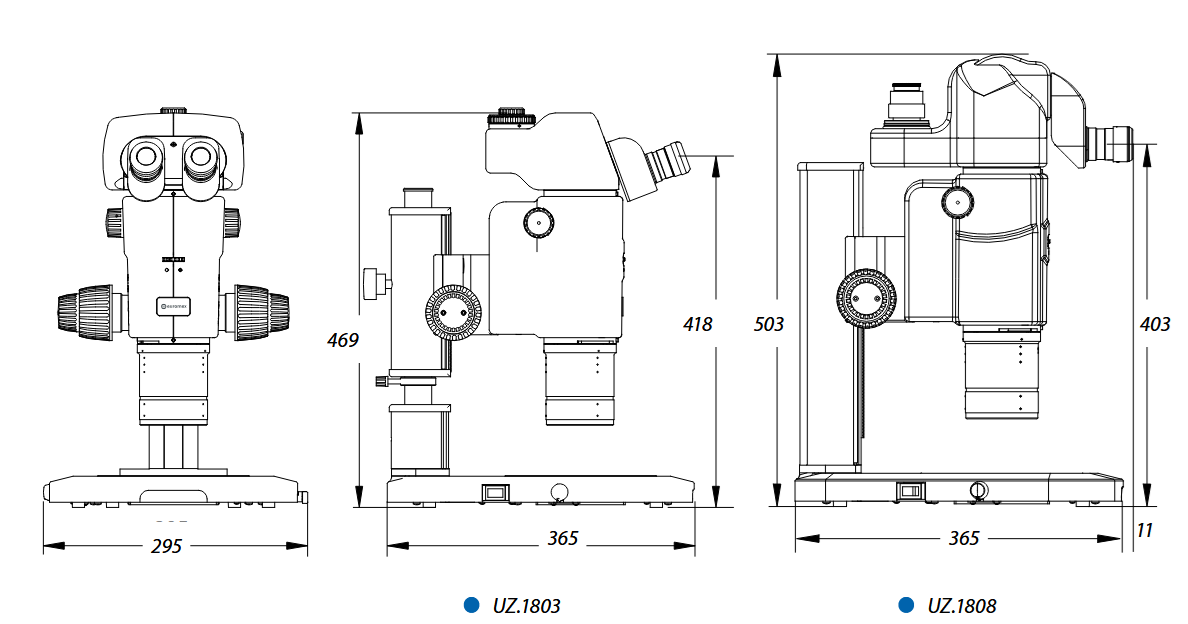

SIZE

UZ.1803 469 (h) x 295 (w) x 365 mm (d) | 12.6 kg
UZ.1808 503 (h) x 295 (w) x 365 mm (d) | 12.8 kg
