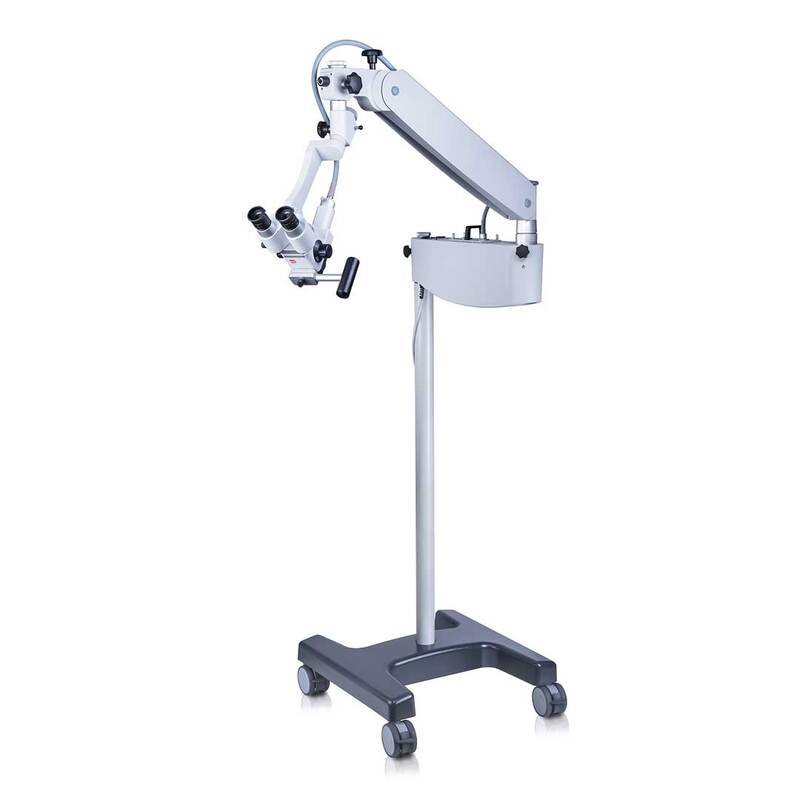

Karl Kaps SOM® 62 examiner microscope for ENT
- Apochromat optics
- LED illumination
- Ergonomic design
- Various magnifications and optical configurations
Lighting:
Integrated LED lighting unit
Objectives:
Interchangeable lenses from 200 mm to 400 mm in 50 mm steps Lenses f = 200 mm and f = 250 mm with integrated focusing (14 mm)
Binocular tubes:
Straight tube f = 125 mm or f = 159 mm
Magnification:
3-step changer, 5-step changer at extra cost
Fine focusing:
Manual focusing 40 mm (optional)
Video camera:
Adaptation of C-mount video cameras using beam splitter and TV tube
Integrated endoscope camera:
For direct adaptation of existing endoscope cameras
Iris diaphragm, green filter, spot illumination:
Optional
