Zumax OMS 6000 dental microscope
- Detachable Eyepiece Design
- 7-Electromagnetic System
- ZuVisionX™ 3D headband
- NakedEYE 4K3D Imaging System
- Auto Focus
- Smart Electric Fine-Tuning
Technical Specifications
- Magnification system: continuously adjustable magnification from 0.4× to 2.4×.
- Total magnification depending on display size: 2–26× on a 15.6″ monitor; 4–53× on a 32″ monitor; 7–92× on a 55″ monitor.
- Field of view diameter: 13.2–185.2 mm.
- Working distance: 200–600 mm.
- BriPlus™ LED illumination: 5700 K colour temperature, CRI >90, illuminance >100,000 lux.
- Built-in filters: yellow and green.
- Illuminated spot diameter: 85–215 mm.

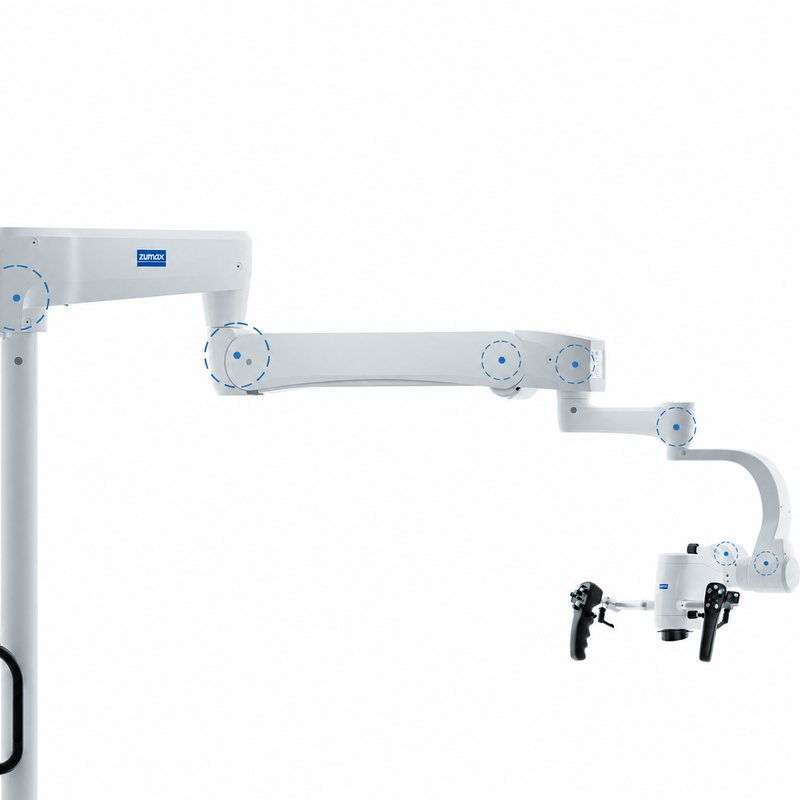

- MultiHandle multifunction handle: electromagnetic brake release and locking, zoom adjustment, electric focusing, photo and video capture, and brightness adjustment.
- SmartMon LCD display: real-time display of working distance, zoom ratio, magnification, measurement coefficient, and LED brightness.
- Arm extension range: >1300 mm.
- First arm: length ≥500 mm, 360° rotation; positioned above the second arm.
- Second arm: length ≥800 mm, ±150° rotation, ±300 mm vertical movement.
- Third arm: length ≥250 mm.
- Integrated 4K imaging system: low-latency built-in camera with a resolution of 3840 × 2160 pixels.
- USB connectivity: 2 × USB 3.0 ports for image and video storage.
- Recording formats: JPEG photos and MP4 videos.
- Video outputs: 3 × HDMI 2.0, 1 × HDMI 1.4, and 1 × 12G-SDI.
- Additional features: autofocus and voice control.
Optional Accessories
- FluoDet™ fluorescence module: for detecting caries and assisting with the removal of excess resin materials.
- iMovCloud workstation: digital storage and editing of still images and videos, case management, sharing, and review for clinical, teaching, and research applications.
- Cross-platform app: supports Windows, macOS, iOS, and Android; microscope video streaming via Wi-Fi or a wired RJ45 connection.
