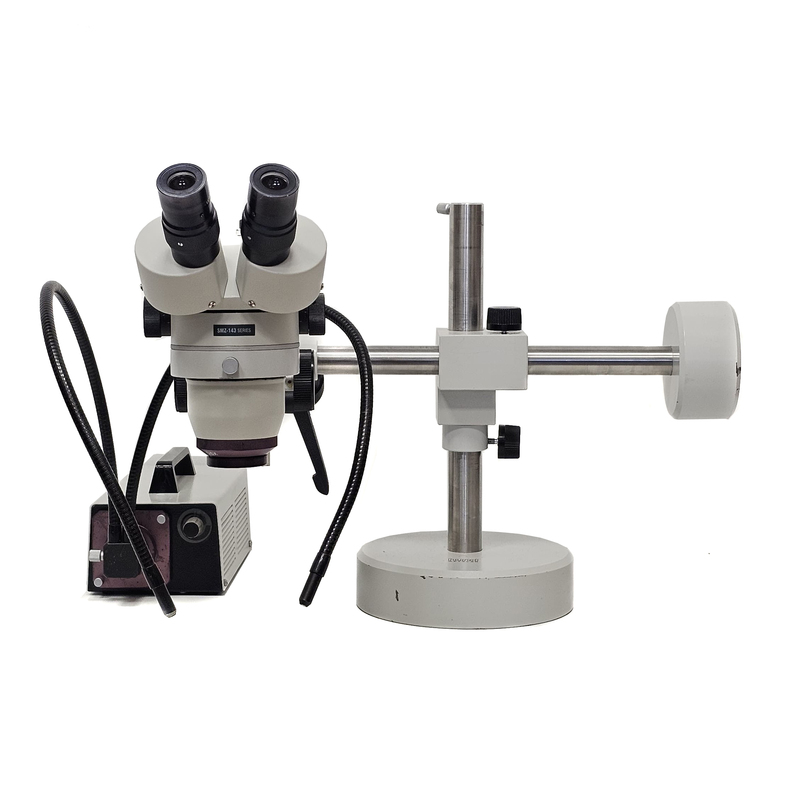

Hund SMZ-143 Stereo Microscope with Stand (Used)
- Price: HUF 220,000
- Illumination: Dual-arm fiber optic light source
- Condition: Used, professionally refurbished instrument
- Warranty: 2 years
Optical Specifications
- Optical system: Greenough optical system
- Observation head: Trinocular, inclined at 45° (camera adapter required for camera attachment)
- Beam splitter: 50/50 or 0/100
- Interpupillary distance adjustment: 55–75 mm
- Diopter adjustment: ±5 D on both eyepieces
- Zoom range: 1×–4×
- Zoom ratio: 4:1
- Eyepieces: WF 10×/20 mm
- Standard magnification: 10×–40×
- Auxiliary objective (included): 0.5×
- Total magnification with 0.5× auxiliary objective: 5×–20×
- Working distance without auxiliary objective: 80 mm
- Working distance with 0.5× auxiliary objective: 133 mm
- Field of view with 0.5× auxiliary objective: 40–10 mm
Stand Specification
- Base diameter: 200 mm
- Base height: 50 mm
- Vertical column height: 300 mm
- Vertical column diameter: 30 mm
- Total horizontal arm length: 450 mm
- Effective horizontal reach: 240 mm
- Focusing range: 45 mm
- Stand weight: 20 kg
- Height adjustment: Manual, lockable
- Horizontal adjustment: Sliding and lockable
- Rotation: 360° around the vertical column
Hund FLQ 85 E – Dual-Arm Fiber Optic Cold Light Source technical Specifications:
- Concentrated, adjustable illumination from two directions
- Flexible fiber optic light guides for optimal illumination of specimens
- Suitable for stereomicroscopy, specimen preparation, and industrial inspection
- Fiber optic design minimizes direct heat transfer to the specimen
- Stable, tabletop light source housing
- Supply voltage: 230 V AC
- Mains frequency: 50–60 Hz
- Rated power consumption: 120 VA
- Nominal lamp voltage: 13.8 V
- Nominal lamp power: 85 W
