Euromex BioBlue digital microscopes

EYEPIECE(S)
Wide field WF10x/18 mm secured eyepiece with pointer for monocular models. The eyepieces of the binocular models are supplied without a pointer

HEAD
Monocular models with 45° inclined tubes
Binocular models have 30° inclined tubes, interpupillary distance is adjustable between 48 and 75 mm and equipped with a ± 5 diopter adjustment on the left tube All heads are 360° rotatable and secured with a screw.
All models are supplied with an integrated 5.0 MP USB-2 camera

NOSEPIECE
Reversed quadruple nosepiece on ball bearings

OBJECTIVE
All models are supplied with semi plan 4x/0.10, 10x/0.25 and S40x/0.65 objectives. Models with an S60x/0.85 or S100x/1.25 oil immersion objective are also available. The S40x, S60x and S100x oil immersion objectives are spring loaded.

All optics are anti-fungus treated and anti-reflection coated for maximum light throughput

FOCUSING
Coaxial coarse and fine adjustments with 200 graduations. Precision 2 μm per graduation, 0.4 mm per rotation.

Total travel approximately 23 mm. Supplied with an adjustable rack stop to prevent damage to samples and objectives.
The coarse adjustments are equipped with friction control

STAGE
130 x 130 mm with mechanical 70 x 28 mm X-Y translation stage except for model BB.4205. This model has a 120 x 120 mm plain stage supplied with two non-removable object clamps

CONDENSER
Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder

ILLUMINATION
Binocular models are supplied with an adjustable 1 W NeoLED illumination system for increased light output. Monocular models have a standard adjustable 1 W LED illumination. All BioBlue microscopes are supplied with rechargeable batteries and integrated power supply for cordless operation

CAMERA
All the BioBlue digital microscopes are equipped with a 5.0 MP CMOS USB-2 camera. Maximum resolution 2560 x 1920, 24 bits color depth, up to 30 frames per second
Delivered with ImageFocus Plus software, USB-2 cable and a micrometer 1mm/100 slide
Warranty for the camera is 2 years

SOFTWARE
The ImageFocus Plus software allows to save images in .jpg, .tif, .bmp or .dicom formats as well as .avi format videos. Images can be annotated and measurements can be performed in live or captured images. Compatible with Windows 10, 11 and higher, both 32 and 64 bits configurations
Mac OS version is also available
Updates can be downloaded on our website www.euromex.com

MODELS WITH LCD SCREEN

• 7” IPS LCD screen
• Screen resolution 1920 x 1080 @ 30 fps
• Save images and videos directly to micro SD card
• Image resolution upto 1844 x 1080 in JPEG format
• Video resolution 1280 x 720 AVI format
• Basic measurement function (line) with calibration. Calibration slide available as option
• Warranty for the screen is two years
• LCD versions do not run on batteries

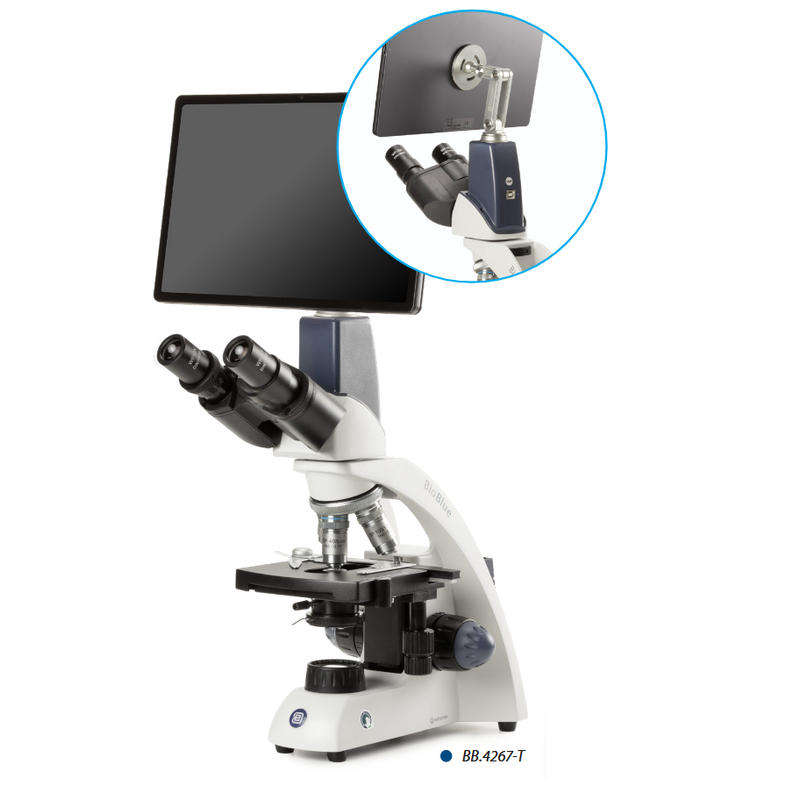

MODELS WITH TABLET AND 5 MP CAMERA
Software and camera as above (5 MP + ImageFocus Plus)

• Processor Quad Core 1.92 GHz HD graphics processor
• Screen 10.1”, 1280 x 800 pixels (WGXA) touchscreen, 16:10, LED backlight
• Memory 2 GB DDR RAM, 2 MB cache
• Storage 32 GB Flash HDD, micro SD/SDHC up to 64 GB
• Webcam 2 MP, 1600 x 1200 pixels front and rear cameras
• Connectivity Micro USB 2.0, Wi-Fi 802.11 b/g/n and Bluetooth 4.0
• Audio Stereo with 3.5 mm audio jack, internal microphone and speaker
• Battery Lithium, 4420 mAh, 17 Wh
• Weight 588 grams (tablet) 4.5 kg (complete)
• System Windows 11
• Software ImageFocus Plus

STORAGE AND TRANSPORTATION

from left to right: AE.9918 - AE.9912

PACKAGING
Supplied with power cord, dust cover, a spare fuse, white filter, user manual and 5 ml immersion oil for models with S100x objective. All packed in a polystyrene box
