Euromex iScope microscope for asbestos
- HWF 12.5/15 mm eyepieces
- Walton-Beckett eyepiece reticle
- APL (Anti-bacterial Protection Layer)
EYEPIECES
Supplied with HWF 12.5x/15 mm (Ø 30 mm tube) eyepieces, one includes a Walton-Beckett reticle
HEAD
• Binocular and trinocular Siedentopf type heads with 30° inclined tubes. Interpupillary distance from 48 to 76 mm
• Two ± 5 diopter adjustments
• A unique rotating system allows the ergonomical positioning of both tubes in a high (431 mm) and in a low position (397 mm)
• The trinocular head 23.2 mm tube fits optional photo C-mount adapters with built-in 0.33x/0.35x, 0.5x or 0.75x objective
NOSEPIECE
Revolving quintuple reversed nosepiece on ball bearings

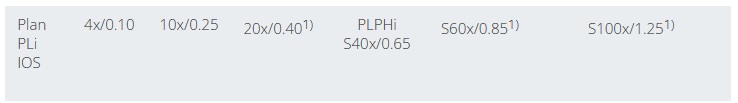

OBJECTIVES
Plan
PLi infinity corrected objectives for asbestos research microscopes
except the S40x which is a plan phase contrast PLPHi infinity corrected
objective
All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
* optional
STAGES
The iScope® rackless stage has no protruding parts, enables more smooth movements and is safer working. 187/230 x 140 mm mechanical rackless stage. Integrated 79 x 52 mm mechanical stage
CONDENSER
Height
adjustable Abbe 1.25 phase contrast condenser supplied with slider with
10/40 annuli, green filter and alignment telescope
FOCUSING
• Coaxial
coarse and fine adjustments, 200 graduations, 1 μm per graduation, 200
μm per rotation, total travel approximately 24 mm and is supplied with
an adjustable rack stop to prevent damage to sample and objectives.
• The coarse adjustment is equipped with friction control
ICARE SENSOR
• The unique iCare Sensor is developed to avoid unnecessary loss of energy
• The illumination of the microscope automatically switches off shortly after microscopists step away from their position
CSS – CABLE STORAGE SYSTEM
• iScope® allows users to easily insert the power cable into the backside of the instrument, which enables easy storage
• The integrated carrying grip at the back of the microscope ensure the safe transportation of the microscope
PACKAGE CONTENT
Supplied
with green filter, phase centering telescope, power cord, dust cover,
spare fuse where available and user manual. All packed in polystyrene
boxes
