Euromex HD-Pro and HD-Autofocus cameras
- Full HD resolution on live view
- Photo capture: 3840 x 2160 pixels (HD-Pro), 1920x1080 pixels (HD-Autofocus)
- 1080p video capture HDMI output
- USB output for PC (HD-Pro)
- Wifi (HD-Autofocus)

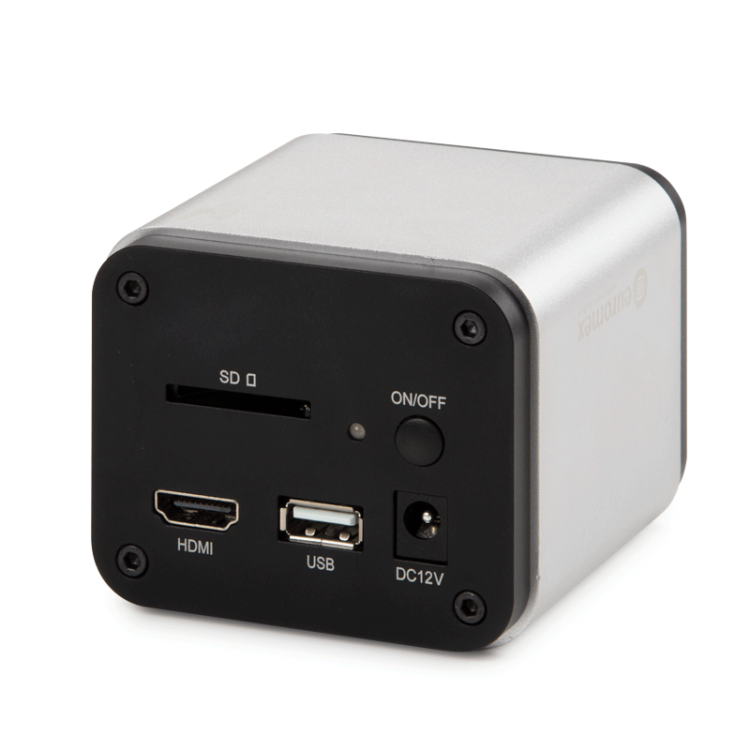

HD-Autofocus camera
TECHNICAL SPECIFICATIONS
Sensor
SONY IMX185 2.0 Mega Pixels CMOS high sensitive sensor
Format1/1.9”, HDTV 1080p (50/60Hz)
Pixels
1920x1080 pixels (capture mode)
1920x1080 pixels (live view)
HDMI 60 fps, WiFi mode 25 fps
(Frame rates have been determined at optimal conditions)
Pixel size
3.75 x 3.75 um
Video
1080p pixels video recording mode
HD screen (VC.3034-HDS)
13", 1080p
Scan mode
Progressive scan, rolling shutter
Noise
De-noise function supported
Senitivity
1120 mv with 1/30s
Exposure
Automatic/ manual
White balance
Automatic/ manual
Dynamic range
65 dB
S/N Max
50 dB
Interfaces
HDMI, WiFi
Storage
High speed 32 GB SD Memory card
(max. 128GB)
Camera buttons
On/ Off
Mounting
C-mount interface
Power supply
DC 12V/1A Adapter
Operation
-10~ 50 ° Celsius, 30~80 % humidity
Storage temperature
-20~ 60 70° Celsius, 10~60%RH
Measurement
Supported
Supplied with
0.5x objective with C-mount, a 32 GB SD-card, 30
and 30.5mm adapters for stereomicroscopes, 12V/1A power adapter, HDMI
cable, USB mouse, WiFi dongle, 76x24mm calibration slide (1mm/100) in
carton box
Product number
VC.3034 / VC.3034-HDS

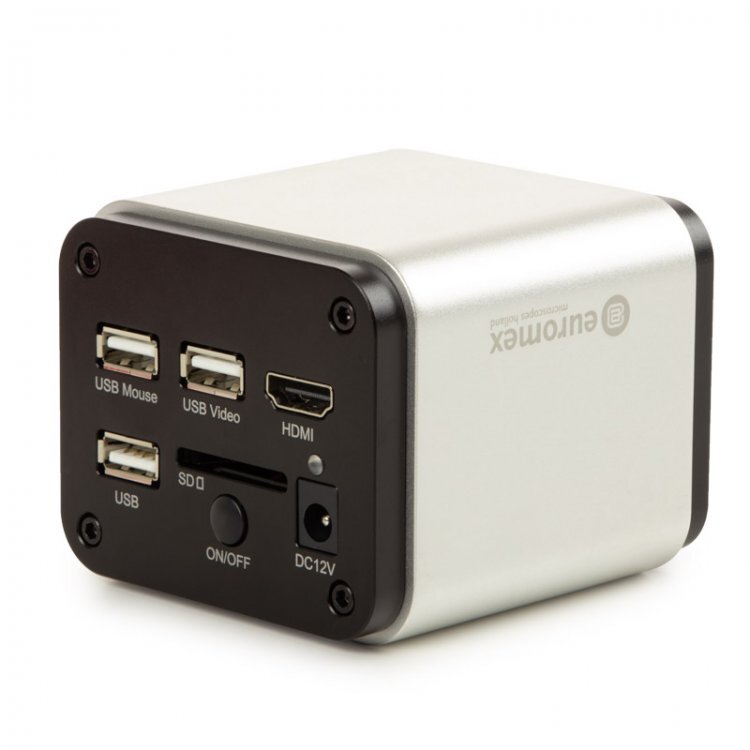

HD-Pro HDMI camera
TECHNICAL SPECIFICATIONS
Sensor
SONY CMOS EXMOR 8 MP
Format
1/2.8”, HDTV 1080p (50/60Hz)
Pixels
3840 x 2160 pixels (capture mode)
1920 x 1080 pixels (live view),
HDMI 60 fps, USB 26 fps
(Frame rates have been determined at optimal conditions)
Pixel size
1.45 x 1.45 µm
Video
1080p recording mode, 30 fps, MP4, H264/H265

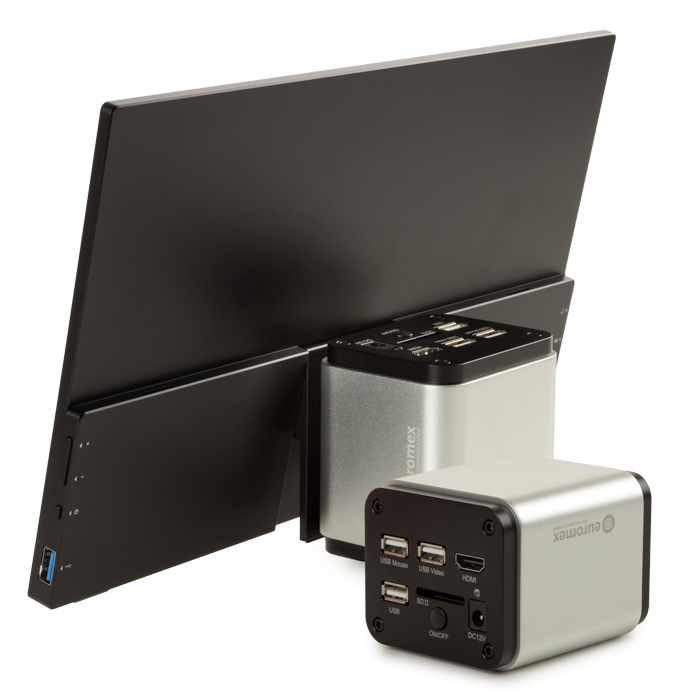

HD screen (VC.3039-HDS)
13”
Video Output
HDMI, USB
Scan mode
Progressive scan, rolling shutter
Exposure
Automatic/manual 0.04 ~ 1000 ms
White balance
Automatic/manual/ ROI
Sensitivity
300 mV with 1/30s
Noise
3D algorithm
Color rendering
24
Signal/Noise (db)
38
Dynamic (db)
66
Interfaces
HDMI, USB-C
Storage
High speed 32 GB SD card included (128 GB max)
Camera buttons
On/ Off
Mounting
C-mount interface
Power supply
DC 12V/1A Adapter
Operation
-10~ 50 C, 30~80% relative humidity
Storage temperature
-20~ 60 C, 10~60% relative humidity
Software
Works with ImageFocus Alpha imaging and measuring software for Windows 10 and higher (32 and 64 bit configurations) Mac OS and Linux
PC requirements
Equal to Intel Core 2, 2.8 GHZ or higher, memory: 2 GB, USB-C
EMBEDDED SOFTWARE
(displayed on TV, no need for computer)
• Capture images and videos to SD
• Playback images and videos from SD
• Measurements
(like Angle, Line, Horizontal Line, Vertical Line, Rectangle, Circle,
Ellipse, Annulus, Two Circles, Polygon, Curve, etc)
• Compare images
• Grids
• Digital zoom in/out
• Flip
• Pause
• Camera settings (white balance, color control etc.)
Supplied with
0.37x objective with C-mount, 30 mm and 30.5 mm adapters for stereo
microscopes, 12 V/1 A power adapter, a 32 GB SD card, USB-C Synchronous
cable 1.5 M, HDMI cable, USB mouse, 76 x 24 mm calibration slide
(1mm/100), carton box
Model
VC.3039 / VC.3039-HDS
