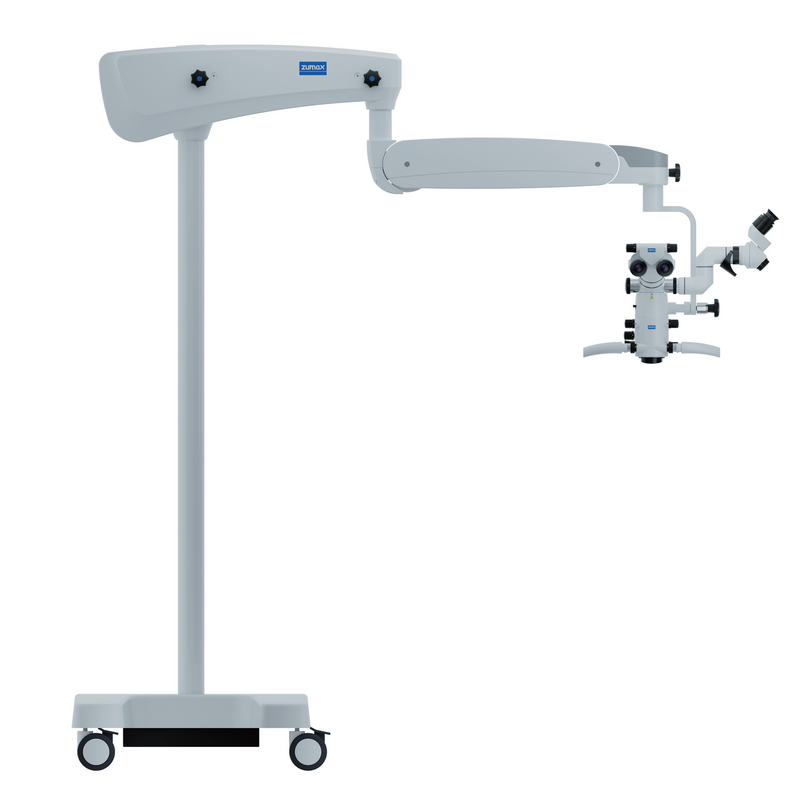

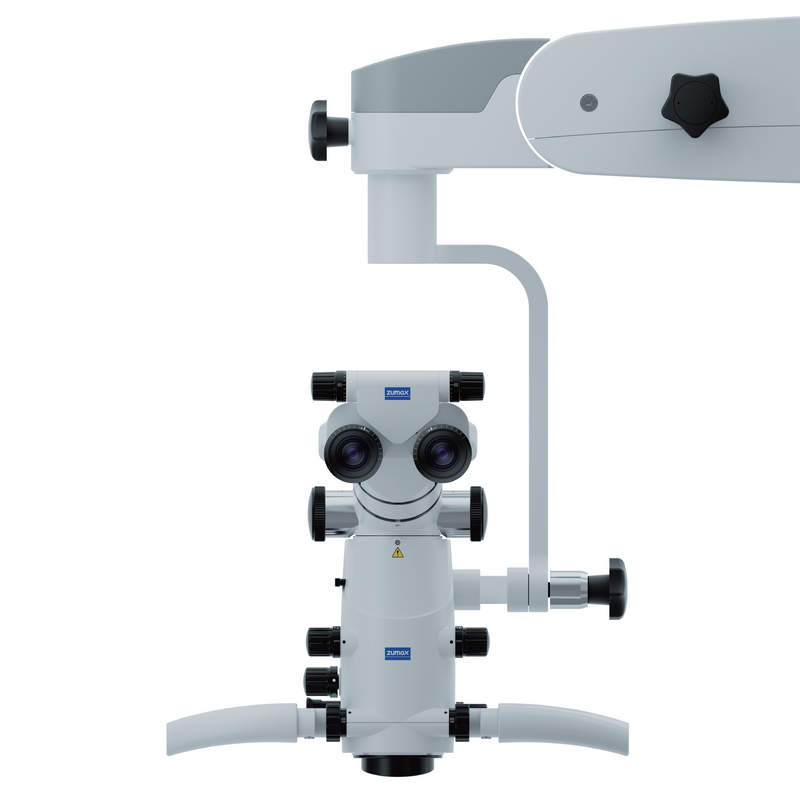

Zumax OMS 2360/2380 surgical microscopes
- Pendulum function allowing 25º left and right inclination
- Integrated 4K camera system (optional)
- VarioDist objective lens – variable working distance 200 – 450mm
- Multi-coated, anti reflective optics to reduce optical aberration
- Tubes: 0 – 190º inclinable tube with PD adjustment
- Eyepieces: 10x, 12.5x and 16x, wide field, with integrated eyecups – also suitable for spectacle wearers
- Fine focus: 12mm range
- Illumination system: 70,000 lux at working distance of 250mm
- OMS2380: Continuos zoom magnification changer: 0,4×–2,4×
- OMS2360: Six-step magnification changer: 0,3×; 0,5×; 0,8×; 1,2×; 2,0×

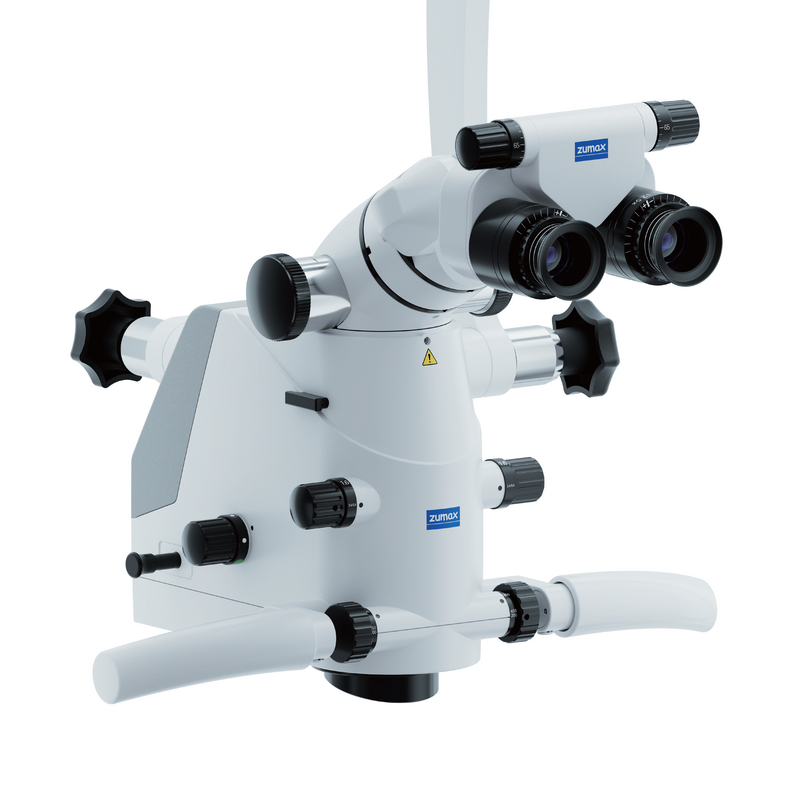

- Head: 0-190° tiltable, ergonomic, binocular tube, f = 170mm
- High extension arm system, rolling stand, on brakeable legs
- Super balancing arm system
- Eyepieces: 12.5x/17.7mm wide-angle eyepieces
- Adjustable pupillary distance via PD knob: between 54-76mm
- Magnification range at f = 250mm working distance and with 12.5x eyepieces: 1.4-24.2x
OMS2380: Continuos zoom
OMS2360: Six-step
| Specific | OMS2380 | OMS2360 |
| Zoom factor | 0,4×–2,4× | 0,3×; 0,5×; 0,8×; 1,2×; 2,0× |
| Total magnification | 1,8×–19,4× | 1,4×–24,2× |
| FOV (mm) | 123,8–11,6 | 151–9,2 |
- Working distance: adjustable between 200-450mm using the special VarioDist® objective
- Illumination: high bright direct LED, life span 60,000 hours
- Brightness: >70,000lx (at 250mm working distance)
- Integrated filters: yellow and green with built-in filter for root canal examination
- Illuminated area: 87mm with f=250mm objective
- Height: 1750mm, maximum reach: 1300mm
- Secondary arm length: 720mm, rotation ±150°
- Primary arm length: 500mm, rotation ±350°
- Head movement: ±300mm
- Base size: 632 x 620 mm
- Weight: 100kg

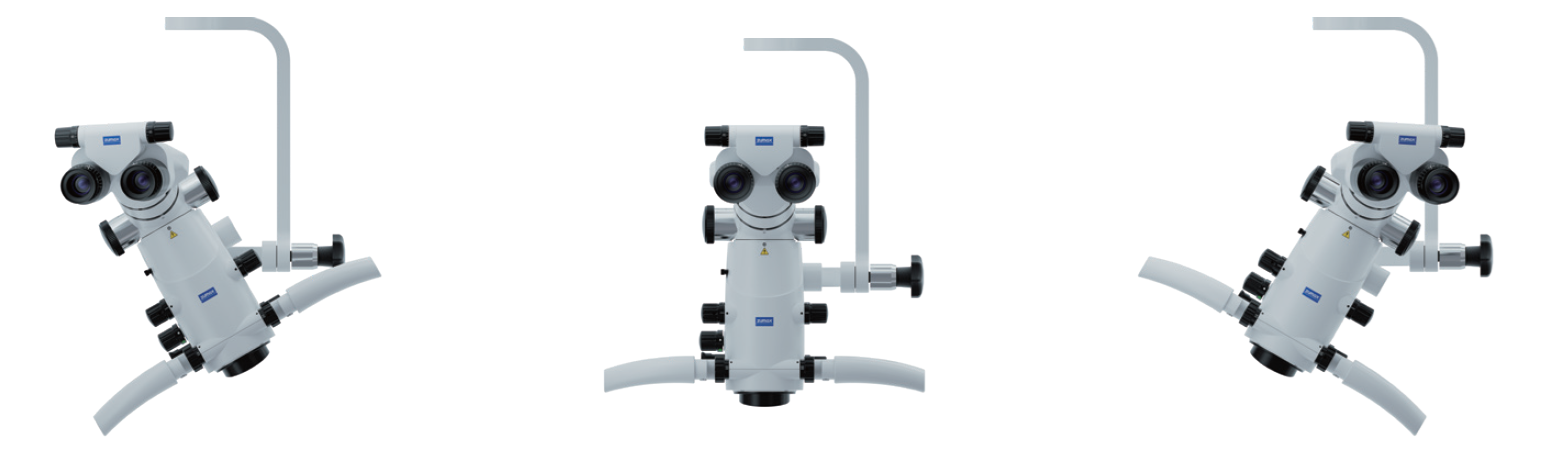

Head-tilting function (optional)
Designed specifically for clinicians. Maintains the horizontal viewing position of the binocular tube. Allows for a head tilt of +/- 25°.
Integrated 4K camera with USB storage (optional)
Zumax offers outstanding UHD resolution and excellent color reproduction, combining high precision with cost-effective operation. The system delivers a 3840×2160 resolution image via HDMI output, with a resolution of up to 1800 TV lines.
The optional recording system allows for capturing still images and videos, as well as saving data directly to an internal USB drive. Recordings can be played back immediately using a mouse.
Recording can be triggered in several ways: via a wireless foot pedal or by using the photo and video buttons located on the handles.
Magnification table:
|
Base parameter |
Magnification changer |
0-180° ergo head |
||
|
Working distance (mm) |
||||
|
200 |
325 |
450 |
||
|
Objective focus (mm) |
||||
|
289 |
409 |
527 |
||
|
Total magnification |
0.3 |
2.6 |
1.9 |
1.4 |
|
0.5 |
4.0 |
2.8 |
2.2 |
|
|
0.8 |
6.5 |
4.6 |
3.6 |
|
|
1.2 |
9.8 |
6.9 |
5.4 |
|
|
2 |
16.1 |
11.4 |
8.8 |
|
|
3 |
24.2 |
17.1 |
13.3 |
|
|
Numerical apertura NA |
0.3 |
0.008 |
0.006 |
0.005 |
|
0.5 |
0.013 |
0.009 |
0.007 |
|
|
0.8 |
0.017 |
0.012 |
0.009 |
|
|
1.2 |
0.023 |
0.016 |
0.013 |
|
|
2 |
0.026 |
0.018 |
0.014 |
|
|
3 |
0.032 |
0.022 |
0.017 |
|
|
Filed of view |
0.3 |
82.8 |
117.2 |
151.0 |
|
0.5 |
55.2 |
78.1 |
100.7 |
|
|
0.8 |
33.8 |
47.9 |
61.7 |
|
|
1.2 |
22.5 |
31.9 |
41.1 |
|
|
2 |
13.7 |
19.4 |
25.0 |
|
|
3 |
9.2 |
13.1 |
16.9 |
|
