Euromex BlueScope digital microscopes

CAMERA
Sensor 5.0 MP 1/2.5 inch CMOS USB-2.0
Format 1/2.5 inch
Color depth 24 bits
Resolution 2592 x 1944 pixels (7 fps)
1280 x 960 pixels (27 fps)*
Dynamic range 76 dB
signal/noise ratio 41 dB
Supplied with USB-2.0 cable and a micrometer 1mm/100 calibration slide

SOFTWARE
• The capture and analysis ImageFocus Alpha software allows to save images
in .jpg, .tif, .bmp or .dicom formats as well as .avi format videos
• Measurements and annotations can be done on live or captured images
• Compatible with Windows 10 and higher, both 32 and 64 bits
configurations
• A Mac OS version is also available
• Free software can be downloaded from our website

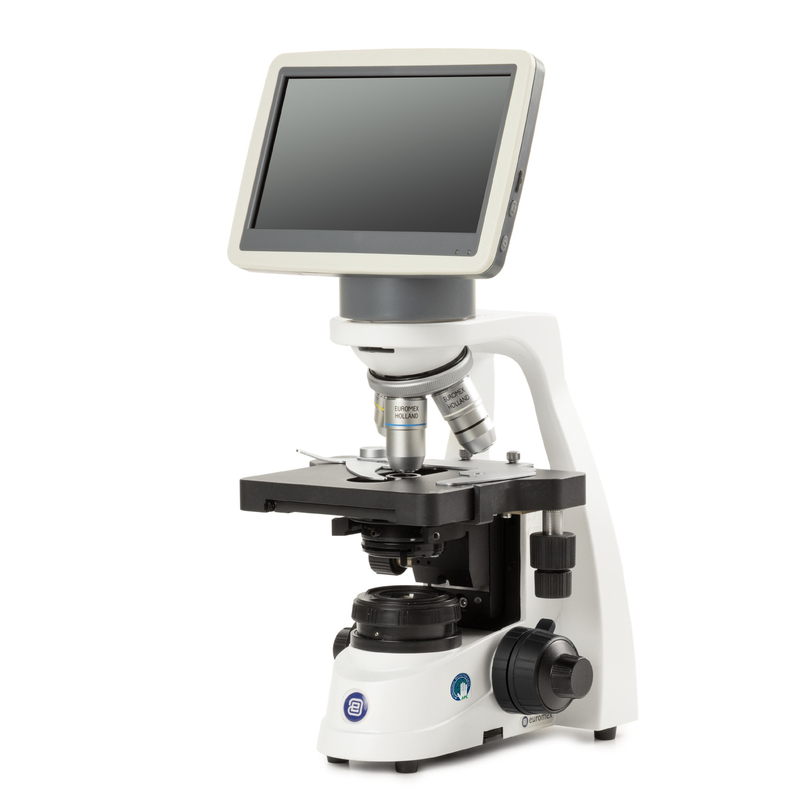

MODELS WITH TABLET AND 5MP CAMERA
• The 5.0 MP CMOS camera ensures excellent color reproduction
• The camera is connected to a Windows tablet PC
• Vivid color graphic display for enabling visualization of microscopic
samples
• With the great features of our ImageFocus image analysis software
• The tablet represents a 2-in-1 solution as it can be disconnected and
used as a real windows tablet
• Being Windows-based and due to its large touch screen of 10.1”
users are sure to have responsive and smooth control
• Software and camera as above (5 MP + ImageFocus Alpha)

EYEPIECE(S)
Wide field WF 10x/20 mm secured eyepieces

HEAD

• Monocular models with 45° inclined tubes

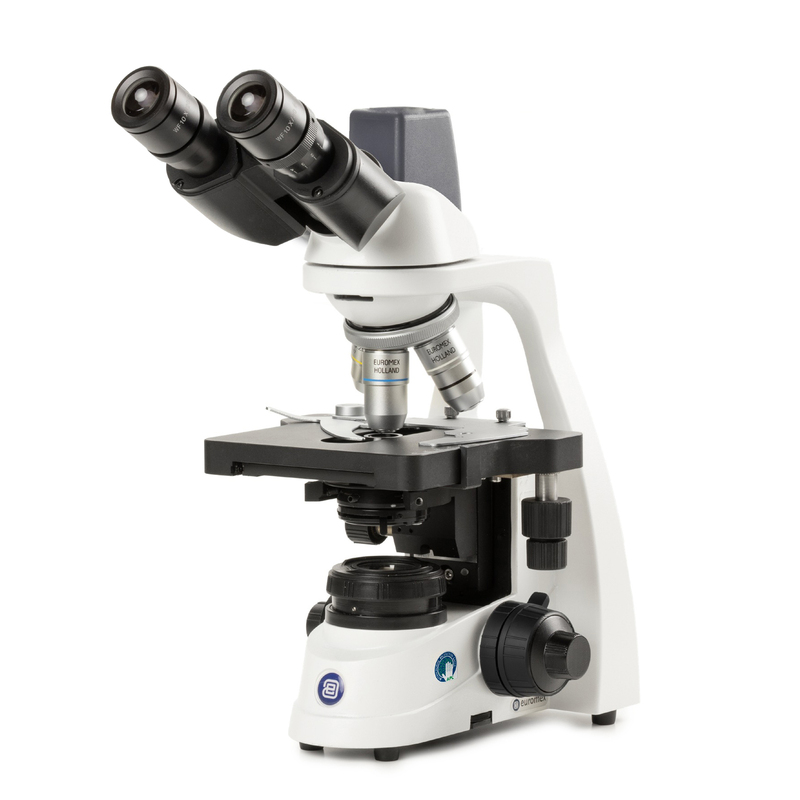

• Binocular and trinocular models have 30° inclined tubes, interpupillary distance is adjustable between 48 and 75 mm and equipped with a ± 5 diopter adjustment on the left tube
• All heads are 360° rotatable. The trinocular head has a fixed light path beam splitter (50:50) and generates an erect image
• The BlueScope can also be supplied with a discussion head
• Models with an integrated 5.0 MP CMOS camera, with a 7” LCD screen or tablet available (See chapter 8)

NOSEPIECE
Reversed quadruple nosepiece on ball bearings

OBJECTIVES - 45 MM PARFOCAL

• All models are supplied with Semi Plan 4x/0.10, 10x/0.25 and S40x/0.65 objectives
• The S40x, S60x (optional) and S100x (optional) objectives are spring loaded

All optics are anti-fungus treated and anti-reflection coated for maximum light throughput

FOCUSING

• Coaxial coarse and fine adjustments with 100 graduations
• Precision 2 μm per graduation, 0.2 mm per rotation
• Total travel range is approximately 10 mm
• Supplied with an adjustable rack stop to prevent damage to sample and objectives
• Improved coarse & fine adjustment, which is equipped with tension control
• With quick focusing aid for finding the slides focusing region with ease

STAGE
Rackless 140 x 135 mm stage with mechanical 70 x 50 mm X-Y translation stage

CONDENSER
Color coded, height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder

KÖHLER ILLUMINATION
Köhler illumination ensures the highest possible contrast and the maximum achievable resolving power. It generates a uniform illumination of the sample and eliminates all interference from dust on lenses and side glare of the light source

DUAL ILLUMINATION SYSTEM

• White LED: 6000 – 6500 K white 3 W LED™.Ideal for standard observations with crisp, cool lighting
• Halogen colored LED: 3000 – 3200 K 3 W NeoLED™. Enhances contrast for specific applications such as transparent objects

ANTI-THEFT SLOT
At the back of the microscope a Kensington Security Slot is placed, which can be used to secure the instrument from theft

PACKAGE CONTENT
Supplied with blue filter, Allen key, 5 ml immersion oil, 100-240 Vac / 5 Vdc USB multi-plug power adapter, 3 rechargeable type AA batteries, manual and dust cover
