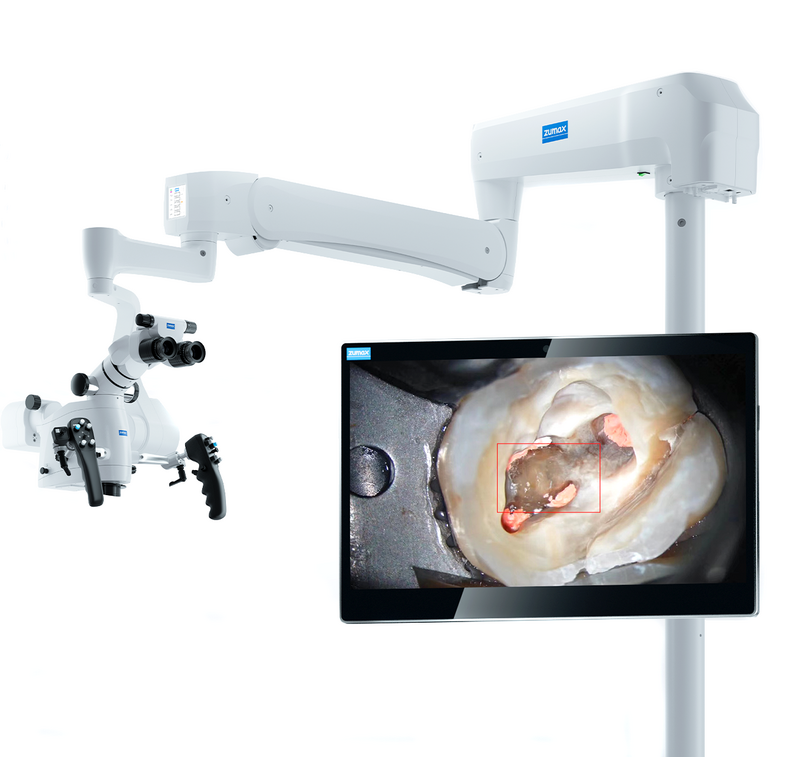

Zumax OMS 3000 dental microscope

- Apochromatic optical system with motorized zoom magnification changer
- 20/80% beam splitter and head rotation adapter

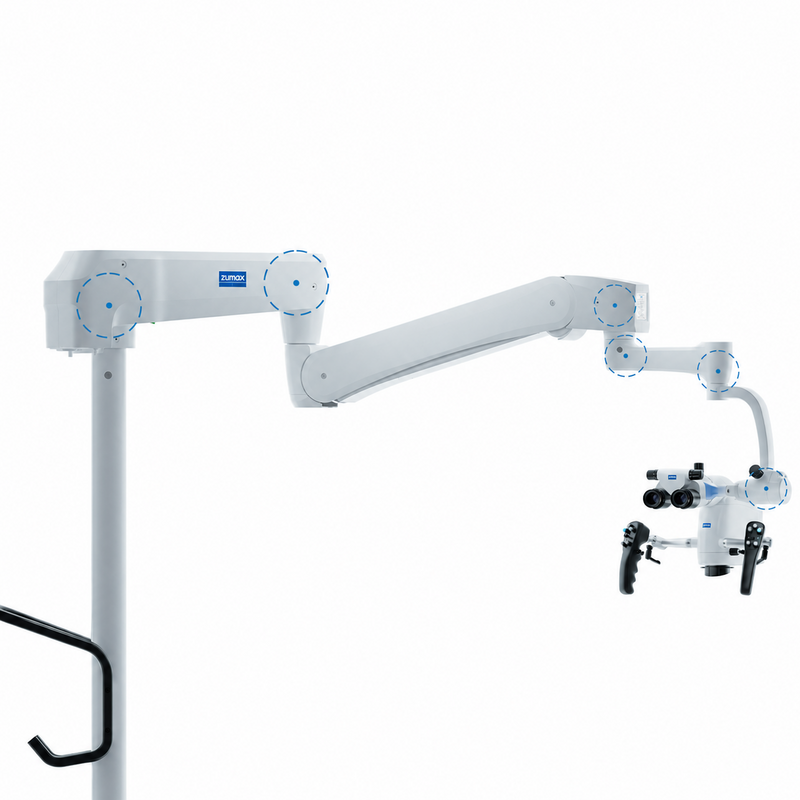

- FreeMov® electromagnetic system: features 6 magnetic brakes for precise positioning and locking
- Integrated, switchable anti-reflective and fluorescence module
- SmartMon® LCD display showing key operational data:
working distance, zoom/magnification factor, actual magnification, LED brightness
- Magnification factor: 0.4x–2.4x
- Zoom ratio: 1:6
- Head: 0–180° tiltable, ergonomic binocular tube, f = 170 mm
- Eyepieces: 12.5x/17.7 mm wide-field eyepieces
- Interpupillary distance adjustment: 55–75 mm, via screw-type adjustment mechanism
- Magnification range (at f = 250 mm working distance and with 12.5x eyepieces): 1.2–17.3x

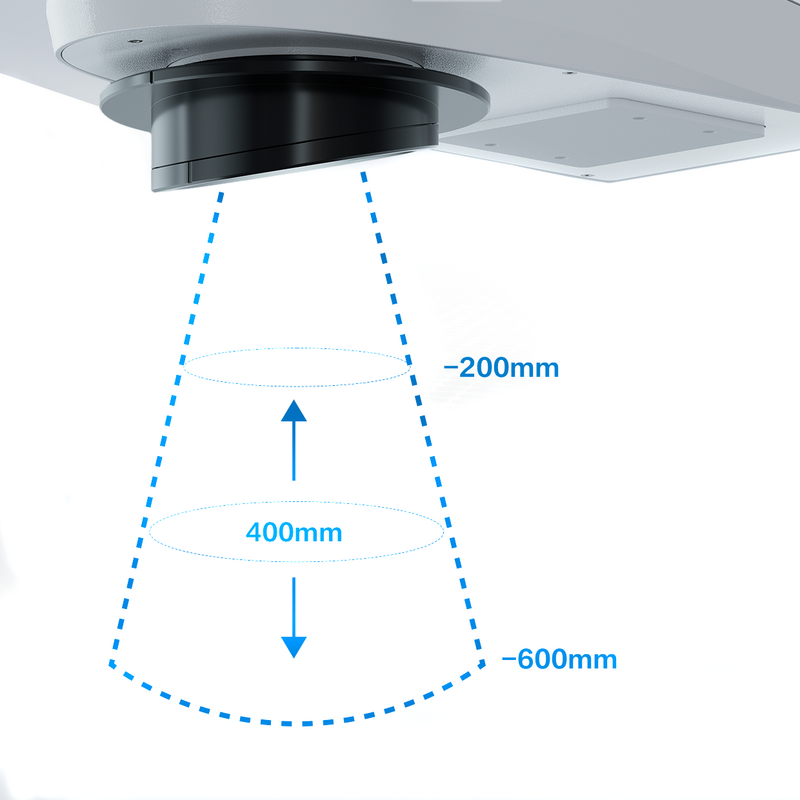

- Working distance: 200–600 mm, motor-adjustable via special VarioDist® objective lens
- Field of view: 12.9–177 mm
- Illumination: high-brightness LED light source, 70,000-hour lifespan
- Dual light source system offering standard LED and FLUOR LED options. - Brightness: 100,000 lx (at a 250 mm working distance); true-to-life colors (CRI 90); color temperature: 5700 K
- Switchable filters: features built-in yellow and green filters, as well as variable spot sizes
- Illuminated area: 85 mm–215 mm

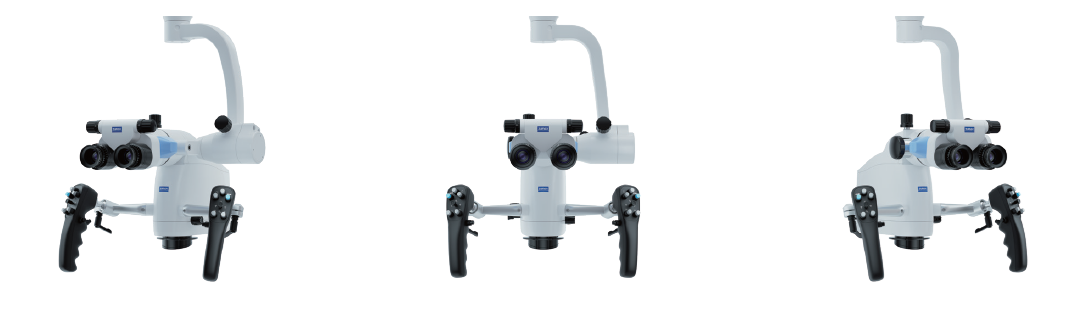

VIEWPIVOT SWIVEL ARM

The objective rotates coaxially with the center of the field of view, ensuring a stable horizontal image and increasing work efficiency.

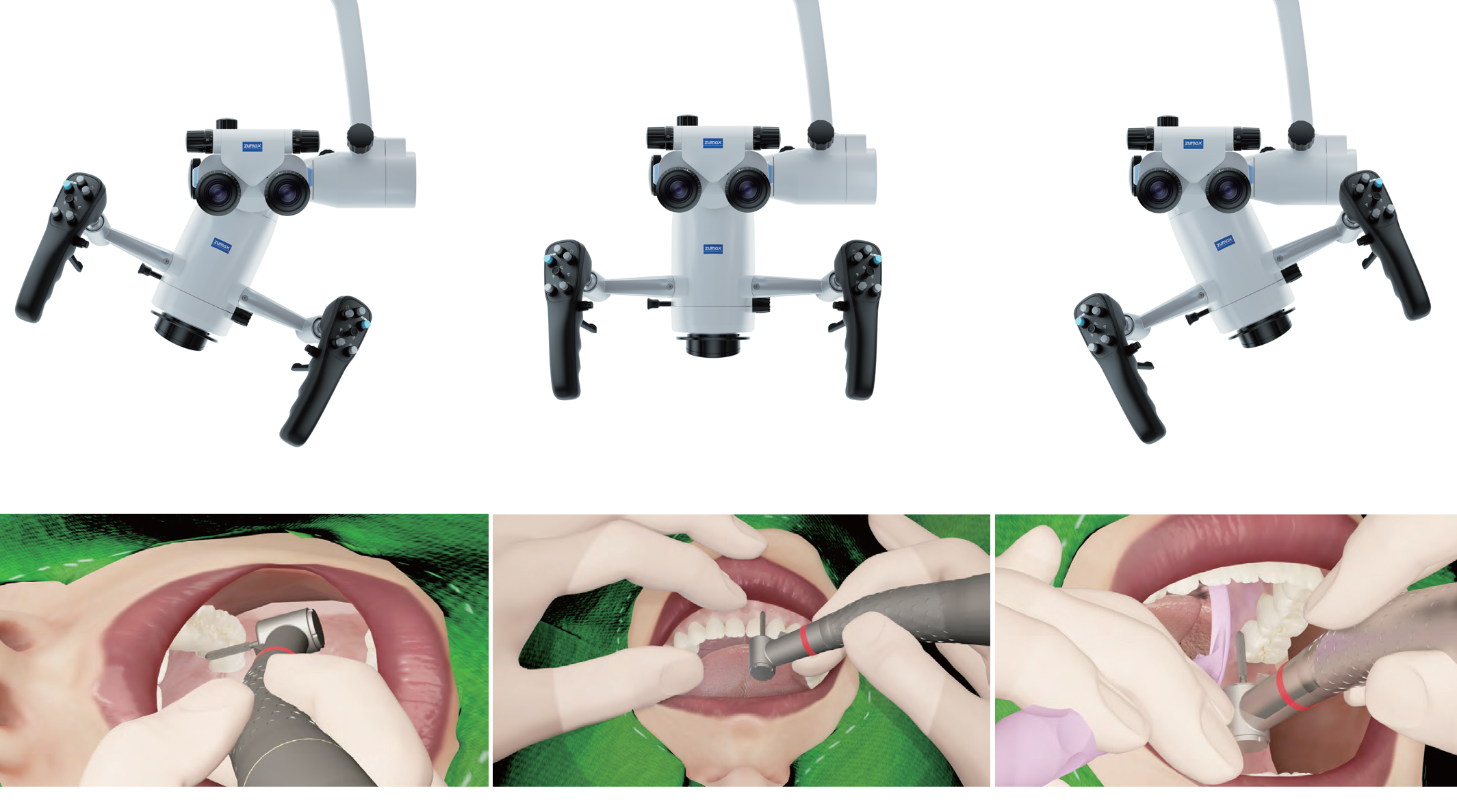

PENDULUM PRO SYSTEM

The microscope body can be moved independently to the left and right without the need to adjust the binocular tubes.

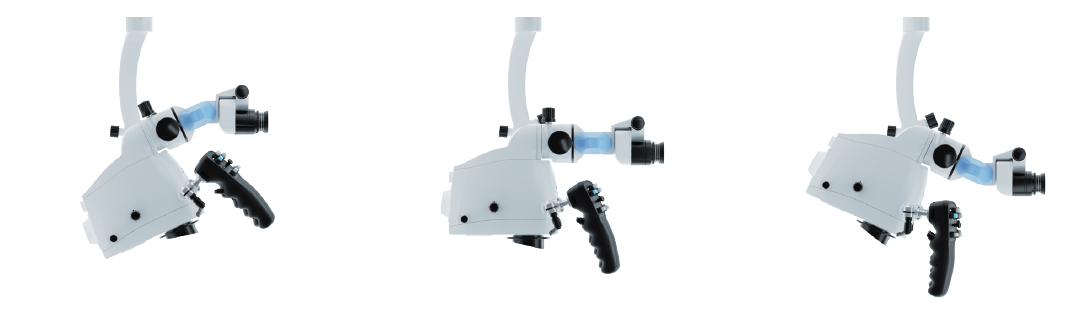

90° OPTICAL EXTENSION DESIGN

The extended design of the binocular tubes enables work in various specialized diagnostic and treatment situations.

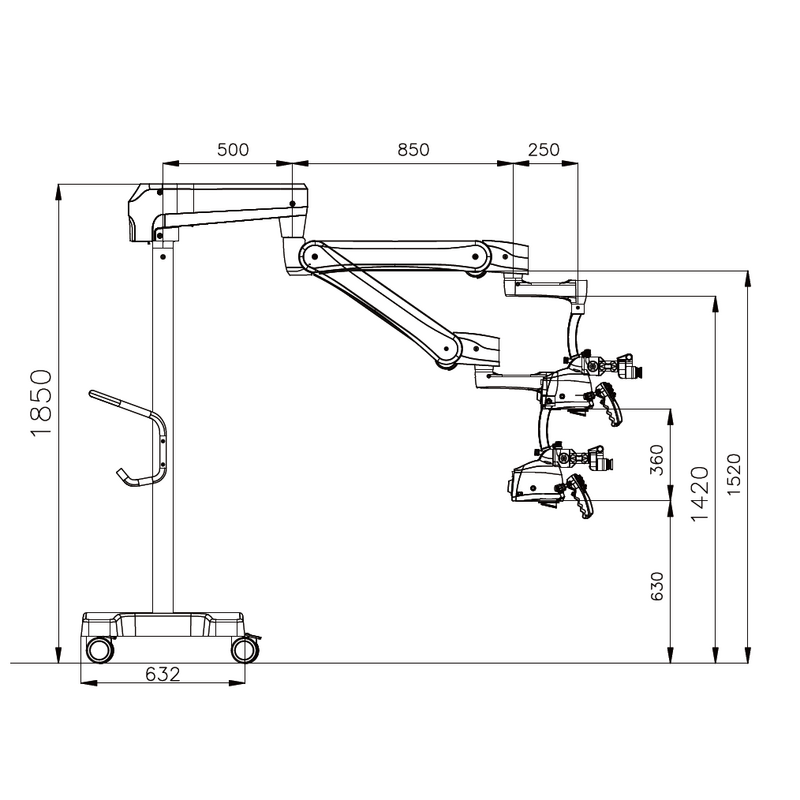

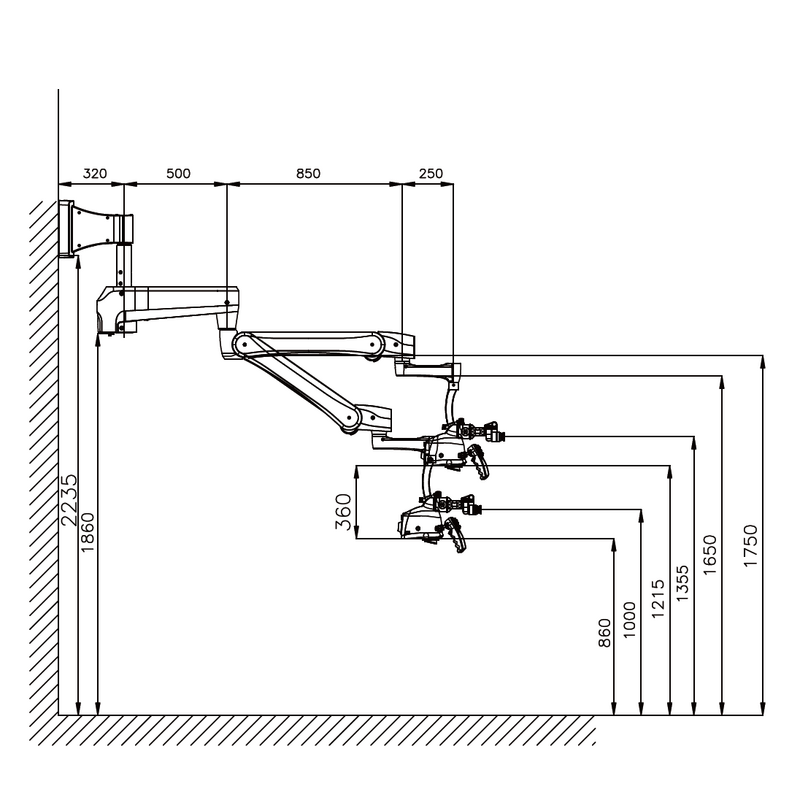

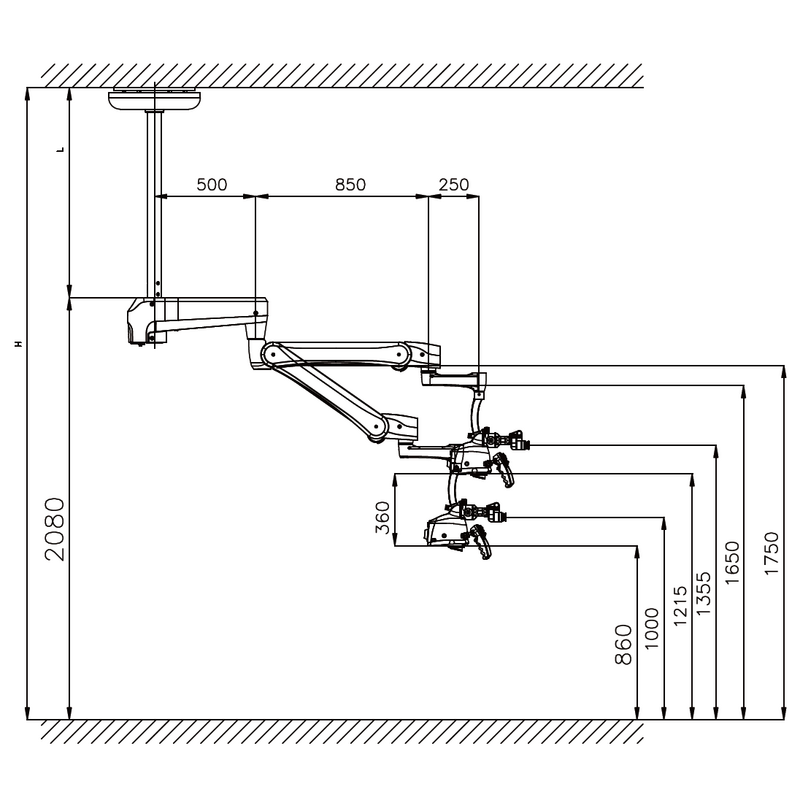

- Primary arm reach: 500 mm, rotation: 360°; secondary arm reach: 850 mm, rotation: 300°; tertiary arm reach: 250 mm
- Head movement range: +/-300 mm
- Base dimensions: 632x632 mm
- Built-in 4K UHD (3840×2160 px), ~1800 TV lines,
